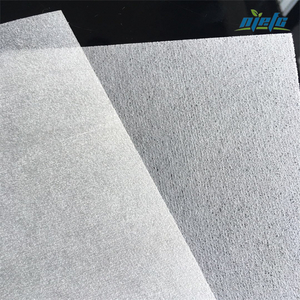

PVC Coated Fiberglass Mat for PVC Floor

Increase stability and strength of PVC floor and save cost.
unit weight:
Availability:
Quantity:
  • NJEFG

  PVC flooring is widely used because of its light weight, beautiful design, not easy to wear and tear, and easy to operate. However, due to the addition of a lot of filling materials, the PVC floor has low strength and high brittleness. PVC material has the characteristics of easy thermal expansion and cold contraction, so the PVC floor of airports, shopping malls, hotels, hospitals and other public places is easy to foam and difficult to repair. In response to this phenomenon, Nanjiang Environmental has developed a PVC-coated fiberglass mat for PVC flooring, using the PVC-coated fiberglass mat as a stable layer for PVC flooring.

  PVC coated fiberglass mat is used in the production of PVC sports flooring. This product uses glass fiber felt as the base material, and melted PVC is evenly coated on one side of the glass fiber, and then cured. In the production process of PVC floor, manufacturers can use glass fiber felt coated with PVC to produce the floor. The PVC surface of this product can be printed with different patterns and then laminated with wear-resistant layer. The glass fiber surface of this product can be laminated with PVC hair Bubble layer. Since the PVC-coated glass fiber felt is covered with PVC on one side, the glass fiber side of the material can be well bonded to the PVC foam layer.

  PVC coated fiberglass mat can also be used as waterproof material, the fiberglass side of this product is well suited for asphalt and cement.

  Glass fiber mat can be 30g/m2, 40g/m2 and 50g/m2 or according to customer's demand. The final weight of PVC coated fiberglass mat can be made according to customer's requirements.

Characteristics

  • Lower unit weight, high strength, uniform surface

  • Significantly reduces the expansion rate of the floor

  • Makes floor more suitable for heating

  • Increase the producing efficiency of floor and rate of finished product

  • Free of formaldehyde, environment friendly


produce PVC coated fiberglass mat for floor PC-300
produce PVC coated fiberglass mat for floor 1
produce PVC coated fiberglass mat for floor 2


PVC coated fiberglass mat is widely used in PVC flooring, also can be used as waterproof material, the fiberglass side of this product can be well applied to asphalt and cement.


produce PVC coated fiberglass mat for floor 1
produce PVC coated fiberglass mat for floor 2
produce PVC coated fiberglass mat for floor 4



Code

fiberglass floor mat

Total unit weight

Tensile strength MD

Tensile strength

CD

Thickness

Moisture

Paper core diameter


g/m2

g/m2

N/5CM

N/5CM

mm

%

mm

PC-300

40

300(±20)

≥200

≥150

0.4(±0.03)

≤1

76

Standard

GB/T 24218.1-2009

GB3820-1997

GB/T 24218.3-2009

GB/T11966-1989


Remark: 1. Roll width 1m, 1.11m (±2mm);  Roll length: 1300m

2. Roll diameter: 70cm (±2 0mm)


Customization

PVC coated fiberglass mat in above table are the standard types, if customer wants specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce as per customer’s requirement, offer tailored service to customers from different countries.


Packaging

1. Roll packaging: plastic film, corrugated carton

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.


Storage

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.


LoadingStandard export loading


MarketsNanjing EFG CO., LTD. is rich in experience for export, welcomes cooperation from all of the world.


DeliveryPVC coated fiberglass mat will be loaded into container in factory, then be delivered to the sea port, finally be shipped to Customer’s port by MSK, MSC, CMA, COSCO, YANGMING, APL,  etc.


PaymentLC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


After sales service

Nanjing EFG CO., LTD tracks cargo of every shipment till customer uses the cargo, and offer any help for customer’s demand in any time.


Technical support

If customer meets any problem about technic, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer’s factory for guiding if necessary.
