PVC Impregnated Fiberglass Mat for PVC floor

Excellent material for PVC floor with good stability and save cost.
unit weight:
Availability:
Quantity:
  • NJEFG

PVC floor is widely used because of light weight, beautiful design, not easy to wear and tear and easy to operation. However, due to the addition of many filling materials, curing process. Since this material be impregnated with PVC, which can make the fiberglass floor mat be fully laminated with PVC layer during the PVC floor producing, and make the PVC floor be flat and be very well stabilized, also makes the floor more suitable for heating. Producing efficiency of PVC floor is increased at the same time.

The fiberglass mat can be 30g/m2, 40g/m2 and 50g/m2 or according to the customer’s demand. And the minimum final weight of the PVC impregnated fiberglass mat can be around 120g/m2, the popular weight is 150g/m2 and 250g/m2, the final weight can be done according to the customer’s requirement.


Characteristics

  • Lower unit weight, high strength, uniform surface

  • Significantly reduces the expansion rate of the floor

  • Makes floor more suitable for heating

  • Increase the producing efficiency of floor and rate of finished product

  • Free of formaldehyde, environment friendly

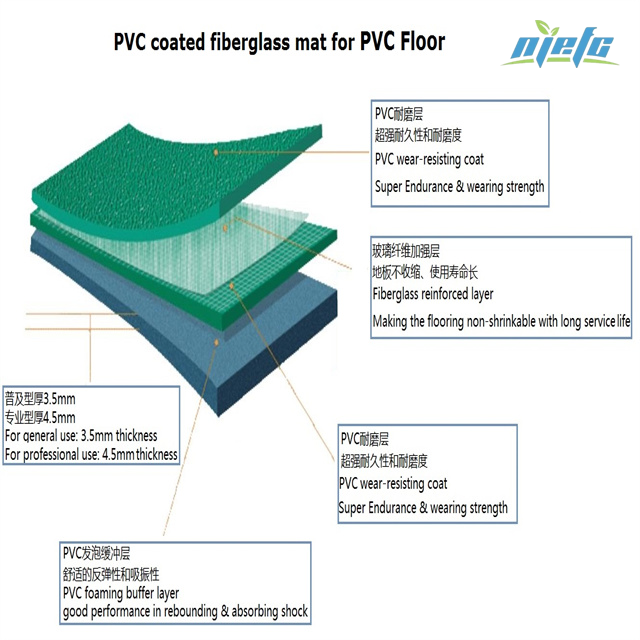

PVC floor mat

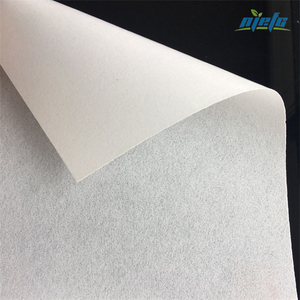

produce PVC coated fiberglass mat for floor 1
PVC floor decoration


Excellent material for PVC floor.


PVC coated fiberglass
PVC floor decoration
PVC floor in hospital



Code

fiberglass floor mat

Total unit weight

Tensile strength MD

Tensile strength

CD

Thickness

Moisture

Paper core diameter


g/m2

g/m2

N/5CM

N/5CM

mm

%

mm

PC-150

30

150(±20)

≥150

≥100

0.3(±0.05)

≤1

76

PC-250

40

150(±30)

≥170

≥110

0.35(±0.05)

≤1

76

Standard

GB/T 24218.1-2009

GB3820-1997

GB/T 24218.3-2009

GB/T11966-1989


Remark: 1. Roll width 1m, 1.11m (±2mm)

2. Roll length: 1300m

3. Roll diameter: 70cm (±2 0mm)


Customization

PVC impregnated fiberglass mat in above table are the standard types Nanjing EFG CO., LTD is delivering to customers, if customer wants specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce as per                    customer’s requirement, offer tailored service to customers from different countries.


Packaging

1. Roll packaging: plastic film, corrugated carton

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.


Storage

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.


LoadingStandard export loading


MarketsNanjing EFG CO., LTD. has delivered cargo to USA, EU, Middle East, North Africa, South Africa, Asian customers with ensured quality and rich experience for export deliveiry. Nanjing EFG CO., LTD welcomes cooperation from all of the world.


DeliveryPVC impregnated fiberglass mat will be loaded into container in factory, then be delivered to the sea port, finally be shipped to Customer’s port by MSK, MSC, CMA, COSCO, YANGMING, APL,  etc.


PaymentLC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


After sales serviceNanjing EFG CO., LTD tracks cargo of every shipment till customer uses the cargo, and offer any help for customer’s demand in any time.


Technical support

If customer meets any problem about technic, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer’s factory for guiding if necessary.
