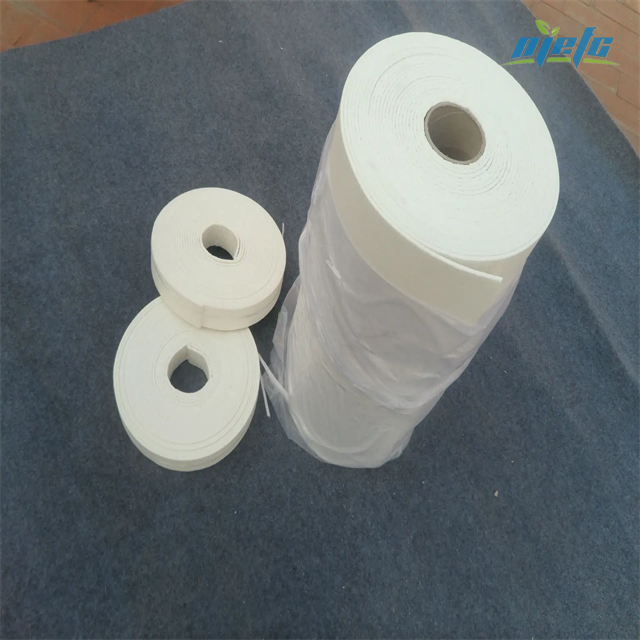

Ceramic Fiber Paper

Used for thermal insulation, sealing, electrical insulation, sound-absorbing, filtering under high temperature

unit weight:	160kg/m3 170kg/m3
Availability:

Quantity:



Inquire Add to Basket

Model:
TXZ-1260
Brand:
NJEFG

Ceramic Fiber Paper uses aluminum silicate fiber as the main raw material, adopting the wet lay-out process, it possesses the superior properties such as high temperature resistance, chemical corrosion resistance, thermal shock resistance, low thermal conductivity, high electrical insulating properties, high elasticity modulus, etc. Ceramic fiber paper is characterized as on-asbestos, longer fiber, less slag ball, small volume-weight, high strength, good elasticity, easy cutting and winding, it is widely used for thermal insulation, sealing, electrical insulation, sound-absorbing, filtering under high temperature, it can replace asbestos products, is a kind of advanced lightweight refractory material.

Specification	TXZ-1260	TXZ-1350	TXZ-1400
Density (kg/m³)	160±20	160±20	170±20
Classification temperature℃	1260	1350	1430
Long-time using temperature℃	1000	1200	1300
Organic matter content%	≤8%	≤8%	≤8%
AL2O3%	≥45	≥52	≥36
AL2O3+SIO2%	≥98	≥99	≥84
Linear Shrinkage (1000℃--24h)	≤3.5%	≤3.5%	≤3.5%
Thermal Conductivity 400℃	≤0.1	≤0.1	≤0.16
Thermal Conductivity 800℃	≤0.19	≤0.19	≤0.22
Thermal Conductivity 1000℃	≤0.36	≤0.36

【Packaging】

Standard export packing for shipping.

1. Roll packaging: PE plastic film

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.

Pallet is free of fumigation, fumigation certificate is available

【Storage】

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.

【Customization】

Materials in above table are the standard types Nanjing EFG CO., LTD is delivering to customers, if customer wants specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce as per customer’s requirement, offer tailored service to customers from different countries.

【Loading】Standard export loading

【Markets】

Nanjing EFG CO., LTD. has delivered materials to USA, EU, Middle East, North Africa, South Africa, Asian customers with ensured quality and good feedback. Wiht rich experience for export and technical support, Nanjing EFG CO., LTD welcomes the cooperation with customers from all of the world.

【Delivery】

Materials will be loaded into container in factory, then be delivered to the sea port, finally be shipped to Customer’s port by MSK, MSC, CMA, COSCO, YANGMING, APL, etc.

【Payment】 LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.

【After sales service】

Nanjing EFG CO., LTD tracks cargo of every shipment till customer uses the materials, and offer any help for customer’s demand in any time.

【Technical support】

If customer meets any problem on technic, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer’s factory for guiding if necessary.
