Fiberglass Composite Mat for paving

An ideal material for paving with high strength
unit weight:
Availability:
Quantity:
  • NJEFG

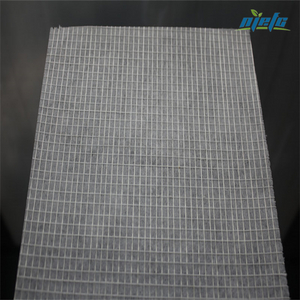

Fiberglass Composite Mat (Reinforced fiberglass paving mat) has a combination structure of Fiberglass Mat + Fiberglass Scrim + Fiberglass Mat. The strong fiberglass mesh embedded into the fiberglass mat is the key to its performance, as reinforced fiberglass paving mat extends the life of pavement overlays through the delay of reflective cracking. The Reinforced Fiberglass Paving Mat provides the highest tensile strength with an elongation lower than 5%, making it a strong, commercially available and full coverage paving mat or fabric.

This product also serves as an effective moisture barrier equal to paving fabrics and mats. The unique, non-woven, fiberglass matrix structure of the Reinforced Fiberglass Paving Mat allows asphalt binder to fully penetrate and fill voids within the fabric, limiting moisture infiltration and preventing water from infiltrating into the granular layers of the pavement structure.

Fiberglass Composite Mat creates innovative solutions to help the paving projects go smoothly and provides superior performance on airport runway, super highway, parking area and business lots.


fiergalss composite mat paving
fiergalss composite mat paving mat
fibergalss composite mat paving mat 4



Fiberglass Composite Mat creates innovative solutions to help the paving projects go smoothly and provides superior performance on airport runway, super highway, parking area and business lots.


fiergalss composite mat paving mat
fibergalss composite mat paving mat 6
fibergalss composite mat paving mat 2


Item No.

Unit

FMF125/500

FMF140/800

Structure


Fiberglass Mat +Fiberglass scrim +Fiberglass Mat

Total unit weight

g/m2

125±10

140±10

Polyester Mat Weight

g/m2

40

40

Tensile Strength MD

N/5cm

500

800

Tensile Strength CD

N/5cm

500

800

Moisture

%

0.8

0.8

Binder Content

%

25

25

Mesh Open

ends/cm

2.0x1.0

3.0x1.6

MD & CD yarns

tex

68x136

68x136

Width

m

1

1

Roll Diameter

m

1.18

1.18

Core Diameter

mm

152

152

【Packaging】

Standard export packing for shipping.

1. Roll packaging: PE plastic film

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.

Pallet is free of fumigation, fumigation certificate is available


【Storage】

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.


Customization

Materials in above table are the standard types Nanjing EFG CO., LTD is delivering to customers, if customer wants specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce as per customer’s requirement, offer tailored service to customers from different countries.


LoadingStandard export loading


Markets

Nanjing EFG CO., LTD. has delivered materials to USA, EU, Middle East, North Africa, South Africa, Asian customers with ensured quality and good feedback. Wiht rich experience for export and technical support, Nanjing EFG CO., LTD welcomes the cooperation with customers from all of the world.


Delivery

Materials will be loaded into container in factory, then be delivered to the sea port, finally be shipped to Customer’s port by MSK, MSC, CMA, COSCO, YANGMING, APL,  etc.


Payment LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


After sales service

Nanjing EFG CO., LTD tracks cargo of every shipment till customer uses the materials, and offer any help for customer’s demand in any time.


Technical support

If customer meets any problem on technic, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer’s factory for guiding if necessary.
